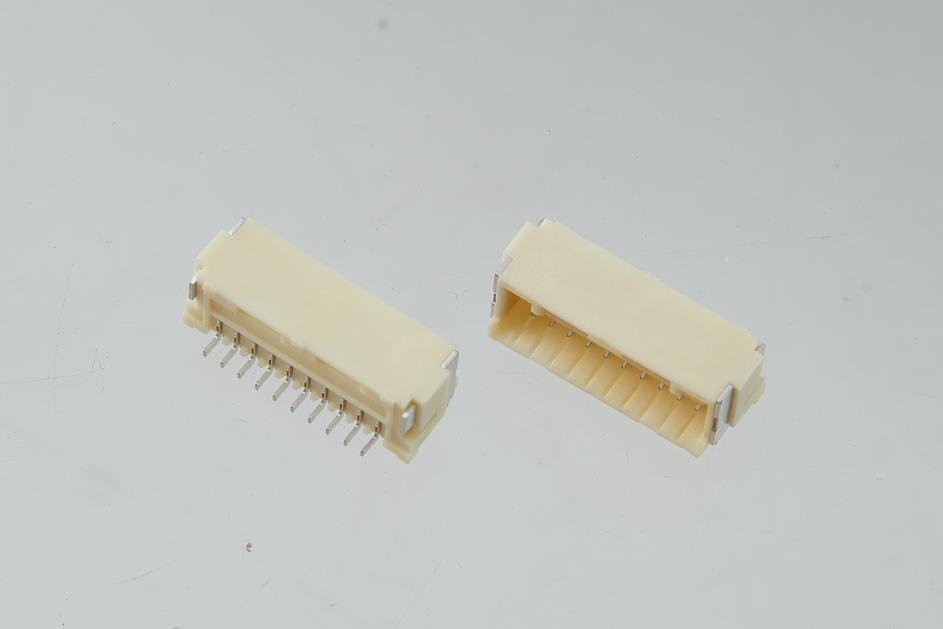

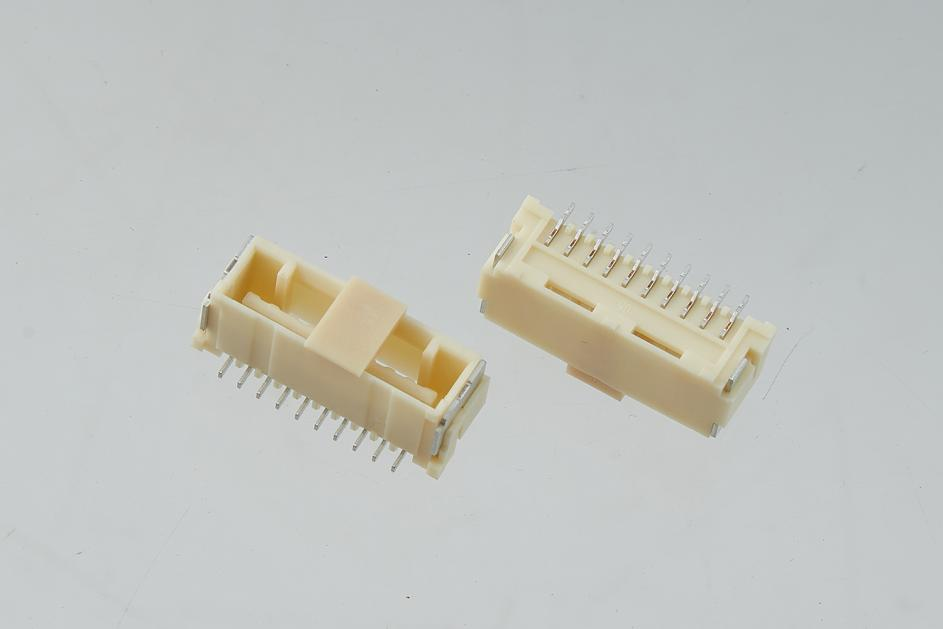

WF15 SERIES 1.5mm Wafer Connector for Automotive Headlights​

WF15002-53201/WF15003-53201/WF15010-53201…


Product Detail

Product Tags

Key Features & Benefits​

High Reliability

1.Robust design for vibration resistance and extreme temperature tolerance (-25°C to +85°C).
2.Gold-plated contacts ensure low resistance and stable conductivity.

Compact & Lightweight

1.1.5mm pitch wafer design saves space, ideal for tight installations in vehicle headlight modules.
2.Lightweight construction (weight: ≤0.5g per contact).

Easy Integration

1.Plug-and-play design with color-coded terminals for quick assembly.
2.Compatible with standard SMT/LD processes.

Certifications

1.IATF 16949 (Quality Management for Automotive Industry)
2.ISO 9001/14001

​Technical Specifications

Parameter

Value

Pitch

1.5mm (±0.1mm tolerance)

Number of Contacts

2–10 positions (configurable)

Voltage Rating

100V DC / 12V AC

Current Rating

2A per contact

Operating Temperature

-40°C to +125°C

Termination Type

IDC (Insulation Displacement Connector)

Wire Gauge Support

2.0A(24 AWG)   1.5A (26 AWG) 1.0A(28 AWG)

Stand Packing Quantity

800/reel

Weight

0.3–0.8g per connector

Certifications

 IATF 16949, ISO9001  14001

​Applications

​●Automotive Lighting Systems: Headlights, Fog Lights, Tail Lights, Interior Lighting Modules.
●​Target Users: Automotive OEMs, Tier-1 Suppliers, Aftermarket Parts Manufacturers.

**Why Choose Us?**​

​●Global Compliance: Meets strict automotive standards (ISO, IATF, ).
​​●Cost-Effective: Competitive FOB/EXW pricing with Low MOQ
​​●Rapid Delivery: Support DDP shipping to worldwide destinations within 15–30 days.
​​●After-Sales Support: 24/7 technical assistance

​Product Images​

1
2

1.Installation in a car headlight assembly.

3

2.Certification labels (UL, IATF, etc.).
